P-F Curve: A Tool For Predicting Equipment Failure

CMMS Maintenance TipsThe Potential-Failure (P-F) curve, is a key tool in maintenance management, assesses asset conditions, and predicts failures. It visually depicts the correlation between failure time and asset condition. A valuable predictor, the P-F curve aids in the proactive scheduling of preventive maintenance, prioritizing critical assets, and enhancing overall reliability. Explore all aspects of the P-F curve here.

What Is The P-F Curve

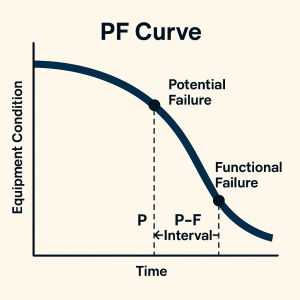

The P-F curve is a graph utilized to assess asset reliability and performance throughout its lifespan, mapping the interval between an asset’s:

Potential Failure (P): At the left end of the curve lies the “Potential Failure” stage. This represents the initial signs and symptoms that indicate a piece of equipment is on the path to failure. These indicators may be subtle and could include abnormal vibrations, increased temperature, or changes in performance metrics. Recognizing these early warning signs is crucial for effective maintenance planning.

Functional Failure (F): The “Functional Failure” stage is at the right end of the curve and signifies the point at which the equipment can no longer perform its intended function. This is the stage where a failure becomes apparent and can lead to downtime, production losses, and increased repair costs. The goal of proactive maintenance is to intervene before reaching this critical stage.

The curve helps to characterize the behavior of equipment over time and assess the maximum usage that can be gained from the equipment.

Understanding The P-F Interval

The P-F Interval, the timeframe between “Potential Failure” and “Functional Failure,” serves as a critical window for maintenance teams to address emerging issues. This interval’s length varies based on equipment types and failure modes, with organizations utilizing historical data to determine typical P-F Intervals for better planning and resource allocation. The P-F curve, offering essential insights into asset behavior and potential failures, is read as follows:

Shape of the Curve: Indicates the type of failure susceptibility. A long-tailed curve suggests gradual wear and tear, while a short-tailed curve signifies failure from sudden events.

Curve Position: Along the x-axis, the curve position reveals an asset’s expected lifetime. Long-lifetime assets start high on the y-axis and decline gradually, whereas short-lifetime assets start low and rise sharply.

How To Create A P-F Curve

To create a P-F curve, you need to plot the interval between an asset’s potential failure (P) and functional failure (F) on an X-Y-axis graph. The P-F curve is a powerful tool used to visualize equipment health over time and identify when preventive maintenance measures should be taken. There are several methods for calculating a P-F curve, including degradation analysis and failure data analysis methods. However, P-F curves are only as good as the data they are based on, and incomplete or inaccurate data can lead to inaccurate curves. By using the P-F curve, maintenance professionals can proactively schedule preventive maintenance, prioritize critical assets, and improve overall reliability.

Creating a P-F Curve involves a systematic approach to monitoring and analyzing equipment behavior over time. Here’s a step-by-step guide on how to create a P-F Curve for your assets:

Define Critical Assets: Identify the equipment or assets that are critical to your operations. These are the ones whose failures could have a significant impact on productivity, safety, or costs.

Understand Failure Modes: Gain a deep understanding of the potential failure modes for each critical asset. This involves identifying the different ways in which an asset could fail, whether due to wear and tear, corrosion, electrical issues, or other factors.

Establish Baseline Data: Gather historical data on the performance of the identified assets. This data should include information on equipment conditions, maintenance activities, and instances of failure. Establish a baseline to understand normal operating conditions.

Implement Condition Monitoring: Deploy condition monitoring techniques such as vibration analysis, infrared thermography, oil analysis, or other relevant methods. Regularly collect data to monitor the health of the assets and detect any deviations from the baseline.

Identify Potential Failure (P) Indicators: Pinpoint the early warning signs or indicators of potential failure for each asset. These may include abnormal vibrations, changes in temperature, variations in performance metrics, or any other measurable parameters.

Determine Functional Failure (F) Points: Establish the criteria for determining when an asset reaches the point of functional failure. This is the stage where the equipment can no longer perform its intended function, leading to downtime and increased costs.

Plot the P-F Curve: Utilize the gathered data to plot the P-F Curve for each critical asset. The x-axis represents time, and the y-axis represents the condition of the asset. The curve starts at the Potential Failure (P) point and ends at the Functional Failure (F) point.

Analyze Curve Characteristics: Interpret the shape of the curve. A long-tailed curve suggests gradual deterioration, while a short-tailed curve indicates a more sudden failure. Analyze the position of the curve on the x-axis to understand the expected lifetime of the asset.

Implement Proactive Maintenance Strategies: Based on the insights gained from the P-F Curve, develop and implement proactive maintenance strategies. Schedule preventive maintenance interventions during the P-F Interval to address potential failures before they lead to functional failure.

Regularly Update and Refine: Continuously update the P-F Curve based on new data and insights. Refine your maintenance strategies as needed to improve the accuracy of predictions and optimize asset reliability.

This step-by-step guide outlines a sample approach to creating a P-F Curve for your assets. Remember to adapt these steps to your specific industry, equipment, and maintenance requirements for optimal results.

Potential Failure And Functional Failure

Potential failure and functional failure are two key concepts in the context of reliability engineering and maintenance management. Understanding these terms is crucial for implementing effective maintenance strategies and ensuring the reliability of equipment and systems.

Potential Failure (P)

Definition: Potential failure refers to the stage in the life cycle of an asset where early signs and symptoms of deterioration or malfunction become detectable.

Indicators: These indicators can be subtle and may include abnormal vibrations, changes in temperature, variations in performance metrics, or other measurable parameters.

Importance: Recognizing potential failures is essential for proactive maintenance planning. Addressing issues at this stage can prevent further deterioration and avoid unexpected functional failures.

Example: In a manufacturing facility, a potential failure might manifest as an increase in machine vibrations in a critical production line. This could be an early sign of misalignment or wear and tear in the machinery.

Indicators: Unusual sounds, abnormal temperature fluctuations, or deviations in product quality could serve as indicators of potential failures.

Functional Failure (F)

Definition: The functional failure represents the point in the life cycle of an asset where it can no longer perform its intended function or meet operational requirements.

Consequences: Functional failure can lead to downtime, production losses, increased repair costs, and potentially adverse effects on safety and quality.

Objective: The goal of proactive maintenance is to intervene before reaching the functional failure stage, enabling organizations to address potential failures during scheduled maintenance activities.

Example: If the misalignment issue in the machinery is not addressed during the potential failure stage, it may lead to a functional failure. In this case, the machine fails to perform its intended function, causing a production line shutdown.

Consequences: Downtime, increased maintenance costs, and potential losses in production output due to the machine’s inability to meet operational requirements.

In the context of the P-F Curve, these concepts are graphically represented to illustrate the relationship between the time of failure and the condition of an asset. The curve starts at the potential failure point (P) and progresses to the functional failure point (F). Monitoring and analyzing this curve provides insights into the health and reliability of assets, helping maintenance teams make informed decisions to optimize equipment performance and prevent unexpected failures.

By distinguishing between potential and functional failures, organizations can develop maintenance strategies that focus on early intervention, predictive analysis, and proactive measures to extend the life of assets and minimize disruptions to operations.

Implementing Proactive Maintenance Strategies

Condition Monitoring: To effectively utilize the P-F Curve, organizations often employ condition monitoring techniques. This involves regularly collecting and analyzing data from equipment to detect deviations from normal operating conditions. Technologies such as vibration analysis, infrared thermography, and oil analysis are commonly used to assess the health of assets.

Predictive Maintenance: Building on the insights gained from condition monitoring, predictive maintenance leverages advanced analytics and machine learning to forecast when equipment is likely to fail. This data-driven approach allows maintenance teams to schedule interventions during planned downtime, optimizing maintenance efforts and minimizing disruptions to operations.

Reliability Centered Maintenance (RCM): RCM is a systematic approach that utilizes the P-F Curve to determine the most effective maintenance strategy for each asset. By evaluating the consequences of failure and the likelihood of failure, organizations can prioritize maintenance tasks and allocate resources efficiently.

A Few P-F Curve Variables for Assessing Asset Condition

Let’s delve into the five critical variables to consider when evaluating an asset’s condition. It’s important to note that not every variable is universally applicable, so choose the methods that align with your specific needs.

Corrosion Monitoring

  • Involves the detection of corrosion within an asset.
  • Predict optimal maintenance intervals.
  • Optimizes maintenance strategies.
  • Identifies and addresses root causes of corrosion.
  • Enhances overall asset reliability.

Motor Testing

  • Applied later in an asset’s lifespan.
  • Various tests focus on factors like insulation degradation, power factor, and harmonic distortion.
  • Provides insights into motor speed, torque, power, and efficiency, especially when the motor is in operation.

Ultrasound Leak Detectors

  • Pinpoints problems with valves, steam traps, bearings, and electrical hazards.
  • Utilizes ultrasound to detect sounds beyond human hearing.

Lubrication Analysis

  • Detects lubrication breakdown, overheating, and component wear.
  • Commonly used for gearboxes, compressors, and moving parts.
  • Advanced methods require lab analysis, with oil temperature measurements as a simpler alternative.

Electrical Testing

  • Method of detecting electrical problems in an asset.
  • Predict optimal maintenance intervals.
  • Optimizes maintenance practices.
  • Identifies and addresses root causes of electrical issues.
  • Enhances overall asset reliability.


  • Recommended for time- or fault-based inspection routes.
  • Detects electrical and mechanical problems causing overheating, such as misalignment or gearbox issues.
  • Ideal for identifying issues after an asset has overheated.

Vibration Monitoring

  • One of the most accessible methods for tracking an asset’s condition.
  • Indicates common mechanical failures like imbalance, misalignment, looseness, and bearing issues.
  • Allows screening of less critical equipment during time-based preventive maintenance.

Remember, selecting the appropriate variables depends on the unique characteristics of your assets and their operational context.

Benefits of P-F Curve

The Probability-Failure (P-F) curve, a visual representation of an asset’s condition, serves as a guide for maintenance and offers various benefits:

Risk Identification: The P-F curve aids in pinpointing assets at risk, allowing prioritized maintenance for critical components. This proactive approach mitigates downtime, saving costs, and enhancing overall reliability.

Failure Prediction: Accurate prediction of failure timeframes is facilitated by the P-F curve. This insight enables proactive scheduling of preventive maintenance, reducing unexpected breakdowns and ensuring uninterrupted operations.

Reliability Improvement: Examining the P-F curve empowers maintenance professionals to address the root causes of failures, enhancing overall asset reliability. Optimizing maintenance practices through the curve leads to improved performance and extended asset lifespan.

Decision-making and Resource Allocation: The P-F curve provides valuable insights into asset conditions, aiding informed decisions on maintenance strategies, resource allocation, and capital investments. Utilizing the curve optimally reduces costs and minimizes risks associated with asset failures.

How Do CMMS Systems Tie In With The P-F Curve?

The Probability-Failure (PF) curve serves as a visual representation of an asset’s health over time, aiding in predicting optimal maintenance intervals. Effectively balancing reactive and preventive maintenance is crucial for maintenance planning. Integrating Computerized Maintenance Management System (CMMS) software enhances this process by enabling the collection and analysis of data on asset health and performance, facilitating the creation of a PF curve. By leveraging this curve to anticipate maintenance needs, organizations can prevent costly corrective work resulting from reactive practices. Furthermore, utilizing the PF curve for proactive maintenance planning ensures a more stable and productive asset, ultimately optimizing the balance between reactive and preventive maintenance. In summary, CMMS systems play a vital role in aligning PF curves with maintenance practices, allowing for data-driven predictions and informed decision-making to optimize asset performance.


The P-F Curve serves as a powerful tool for organizations dedicated to refining maintenance strategies. By identifying potential failures early in the equipment lifecycle, maintenance teams can implement proactive measures, enhancing reliability, reducing downtime, and increasing overall operational efficiency. This embrace of the P-F Curve signifies more than a methodology; it represents a paradigm shift toward a sustainable and cost-effective approach to asset management. Complementing this, the guide outlines a sample approach to creating a P-F Curve for assets, emphasizing its crucial role in proactive maintenance within manufacturing. Distinguishing potential failures (P) from functional failures (F) allows for early interventions, preventing costly downtimes. Incorporating condition monitoring and predictive maintenance strategies is pivotal, and integrating a robust Computerized Maintenance Management System (CMMS) further streamlines data management and decision-making. Adapt these steps to your industry, equipment, and maintenance requirements for optimal results.

Frequently Asked Questions (FAQs) About the P-F Curve

What is the P-F Curve?

The P-F Curve is a graphical representation on an X-Y-axis that visualizes equipment health over time, illustrating an asset’s behavior and progression toward failure. The X-axis denotes the time to failure, while the Y-axis represents an asset’s resistance to failure.

How to Create a P-F Curve?

To create a P-F Curve, plot the interval between an asset’s potential failure (P) and functional failure (F) on an X-Y-axis graph. Various methods, including degradation analysis and failure data analysis, can be employed for accurate curve calculation.

Benefits of the P-F Curve

The P-F Curve aids maintenance professionals in proactively scheduling preventive maintenance, prioritizing critical assets, and enhancing overall reliability. Detecting failures in their early, actionable stages allows for strategic planning of corrective actions.

Understanding the P-F Interval

The P-F Interval is the duration between potential failure (P) and functional failure (F) of an asset. It signifies the timeframe between detecting an asset’s potential failure and when it reaches functional failure.

Application in Maintenance Management

Utilizing the P-F Curve enables maintenance teams to implement proactive measures, bolstering reliability and reducing downtime. By identifying potential failures early in the equipment lifecycle, operational efficiency is increased, aligning with a sustainable and cost-effective approach to asset management.
