CNC machines are the backbone of modern manufacturing, but even the most advanced equipment can grind to a halt without proper maintenance. Every unexpected breakdown means lost production time, costly repairs, and frustrated customers. The good news? Most of these issues can be avoided with regular maintenance that keeps your machines running at peak performance.
By following a consistent care routine, you can extend equipment lifespan, improve precision, and see a significant reduction in unplanned downtime. This not only saves money on emergency fixes but also boosts overall productivity.
In this post, we’ll cover practical steps to maintain your CNC machines and ensure your operations run smoothly, reliably, and cost-effectively.
Discover the impactful benefits of integrating a state-of-the-art Computerized Maintenance Management System (CMMS) to enhance your maintenance approach for CNC milling machines.

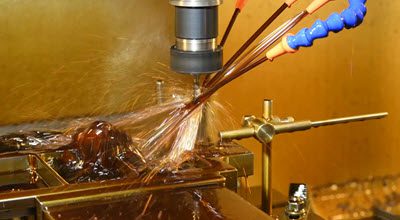

What is a CNC Milling Machine?
A CNC machine, short for Computer Numerical Control milling machine, is a cutting-edge automated tool used in manufacturing and machining processes.
Unlike manual milling, it operates through precise computer programming, enabling the machine to create intricate and accurate components by removing material from a workpiece.
CNC milling machines are vital in industries such as aerospace, automotive, and electronics, delivering high precision, repeatability, and efficiency in the production of complex parts.
What is the maintenance of a CNC milling machine?
The maintenance of a CNC milling machine involves a series of systematic tasks aimed at ensuring its optimal performance and longevity.
This includes regular visual inspections to identify signs of wear or damage, clearing away chips and debris, applying proper lubrication, checking coolant levels and filters, inspecting cutting tools, calibrating machine axes, cleaning and lubricating ball screws, and addressing electrical components.
Following manufacturer recommendations and adhering to a customized maintenance schedule are essential to upholding precision, accuracy, and efficiency in CNC milling operations.
Common CNC Maintenance Challenges
The operations of a CNC machine comprise:
- Mechanical components
- Electrical equipment
- Electronics components
- Software
Since CNC machines have numerous moving parts and sensitive mechanical elements, they demand precise and consistent maintenance tasks to prevent wear, misalignment, or breakdowns. Moreover, electrical equipment must be inspected regularly to avoid issues like faulty wiring, unstable power supply, or overheating, which can cause sudden downtime.
In addition, electronics components such as sensors, control boards, and interface systems are vulnerable to dust, temperature fluctuations, and vibration, making preventive care essential. The software, which drives the entire machining process, also requires periodic updates, backups, and configuration checks to ensure accuracy and compatibility with production requirements.
Considering that CNC machining often requires precision in the range of 0.0001”, even minor deviations in any of these areas can compromise the quality of the final product. Therefore, staying proactive with these maintenance tasks not only reduces costly repairs but also maximizes uptime, extends machine lifespan, and ensures consistent peak equipment performance.
Implementing Preventive Maintenance
Every CNC machine is a little different, so your maintenance manager should create a plan that matches your equipment’s exact needs. CNC machine manufacturers usually provide maintenance recommendations in their manuals. You should also consider:
- How many hours per day does your machine operates.
- The environment of your shop (dusty, humid, temperature changes).
- The types of machine tools used.
- Production demands.
To achieve peak performance and extended longevity of CNC milling machines, a comprehensive preventive maintenance approach is essential. This involves a series of strategic steps:
- Asset Assessment: Begin by thoroughly understanding the CNC milling machine’s design, usage, and historical performance data. Identify critical components prone to wear and tear, such as bearings, belts, and motors.
- Maintenance Schedule: Develop a preventive maintenance schedule tailored to the CNC milling machine’s requirements. Determine appropriate intervals for cleaning, lubrication, inspections, and potential replacements.
- CMMS Integration: This is where a CMMS comes into play. By integrating the CNC milling machine into the CMMS, you can track maintenance tasks, set up automated alerts for upcoming tasks, and ensure that the right resources are available at the right time.
- Data-Driven Insights: CMMS allows you to gather and analyze real-time data from the asset. Vibration measurements, temperature readings, and other performance indicators can offer insights into the machine’s health, enabling timely interventions.
- Work Order Management: When a scheduled maintenance task is due or a potential issue is detected, CMMS generates work orders for technicians. This ensures that tasks are executed promptly and efficiently.
- Historical Records: CMMS maintains a historical record of maintenance activities, enabling you to track the CNC milling machine’s performance trends and make informed decisions for future maintenance strategies.
CNC Machine Maintenance Checklists
Maintenance checklists help technicians and operators complete their work safely and efficiently. Breaking tasks into daily, weekly, monthly, and annual intervals makes maintenance easier to manage and ensures that nothing is overlooked.
Daily Maintenance Checklist
Daily checks are like brushing your teeth; they prevent problems before they start.
These tasks should be done every day:
- Inspect lubricant levels and pressure: The moving parts in your machine need proper lubrication to prevent friction and wear. Check the level and pressure daily, and top up if required.
- Check coolant level and quality: Use a coolant refractometer to make sure the coolant-to-oil ratio is correct. Low or poor-quality coolant can damage the workpiece and the machine.
- Clean the coolant disposal tray: This prevents metal shavings and sludge from clogging the system.
- Check for moisture in pneumatic air lines: Moisture can cause rust and damage pneumatic system components. If you detect any, drain it immediately.
- Check pneumatic air pressure: Use a pneumatic pressure gauge to confirm the air pressure is within the correct range.
- Wipe the machine: A clean machine runs better. Use a clean rag to wipe off dust, debris, and residue.
- Check the output of the voltage stabilizer: Electrical stability is important for precise CNC operations. Make sure the voltage matches specifications.
- Check panel cooler temperature: Overheated control panels can cause electronics to fail.
- Listen for unusual noises: Knocking, grinding, or banging sounds can indicate misalignment or worn parts.
- Watch for overheating: Pay attention to temperature changes during operation. Overheating can damage machine components.
Weekly Maintenance Checklist
Weekly CNC machine maintenance focuses on more detailed checks to keep machine components in good condition and to apply preventive measures before problems grow.
- Clean the machine shop area: Remove dust, chips, and debris around the machine. If dirt gets inside, it can cause premature wear or even a CNC machine breakdown.
- Check for leaks: Look for signs of oil, coolant, or lubricant leaks. Leaks often point to failing seals, hoses, or fittings.
- Inspect cooling fans: Confirm that all fans, including spindle motor fans, hydraulic motor fans, and system cooling fans, are working. Cooling failures lead to overheating.
- Visually inspect components: Look for dryness, wear, cracks, or corrosion. Lubricate moving parts where needed.
- Check tool heads in the tool changer: Loose tools can damage parts and ruin production accuracy.
- Lubricate tool changer parts: Apply grease to the v-groove, plungers, slider cap, extractor forks, keys, and springs.
- Test electrical components: Ensure switches, lights, and other electrical components are functioning properly to prevent operational interruptions.
Monthly Maintenance Checklist
Monthly CNC machine maintenance goes beyond surface cleaning to target hidden issues that can cause long-term damage. These tasks protect both machine components and overall performance.
- Clean the chip collector near the coolant tank: Metal chips and debris can clog coolant flow, reduce cooling efficiency, and even cause overheating.
- Inspect jaws, chucks, and fixtures: Remove these parts, clean them thoroughly, and adjust as needed. This ensures secure workpiece holding, which is critical for machining accuracy.
- Clean or replace air filters: Clogged air filters reduce airflow, which can overheat electrical components and strain the hydraulic system.
- Check tool head condition: A worn tool head affects precision and can damage both the tool and the workpiece. Replace if necessary.
- Inspect chains and conveyors: Lubricate, tighten, and adjust these moving parts to keep materials flowing smoothly.
- Clean machine fans: Dust buildup reduces cooling capacity, increasing the risk of overheating.
- Check oil, lubricant, and coolant logs: Sudden changes in consumption can signal leaks or internal damage.
- Clean radiator grills: Clear out dust and debris to maintain proper airflow and prevent excessive heat buildup.
These monthly steps form a key part of a preventive maintenance plan, ensuring your CNC machine operates reliably.
Annual Maintenance Checklist
Annual CNC machine maintenance is the most thorough stage of your preventive maintenance plan. This is similar to giving your machine a complete health check-up. These maintenance interventions go beyond cleaning and adjustments, focusing on long-term reliability and optimal performance.
- Inspect the coolant cylinder tank: Remove the tank, then check for metal debris, sludge, or biological growth like bacteria or fungus. These can contaminate coolant and damage machine components. Clean and sanitize the tank before reinstallation.
- Drain and replace lubricant: Over time, lubricants collect dirt and lose effectiveness. Drain the old lubricant, clean the housing, and refill with fresh oil to protect moving parts.
- Check pneumatic oil for contaminants: Dirty pneumatic oil can reduce efficiency and damage the hydraulic system. Replace it if contamination is found.
- Replace all oil filters: Clogged filters restrict oil flow, increasing wear. New filters ensure a steady supply of clean lubrication.
- Run software simulations: Use the machine’s control software to verify tool alignment and indentation accuracy, ensuring precision machining.
- Check for backlash: Reverse the tool head axis quickly in software. If there’s a noticeable delay before movement starts, the system has backlash, meaning further adjustments or repairs are needed.
Evaluate CNC Maintenance’s Effectiveness
Doing CNC machine maintenance is important, but simply checking tasks off a list isn’t enough. That is why you need to know if your preventive maintenance plan is actually working. The goal is to ensure that your efforts reduce machine downtime, improve quality, and keep machine tools performing at their best.
Start by tracking downtime before and after you put your maintenance plan in place. If your machine is stopping less often for repairs, that’s a positive sign. Next, compare production quality and scrap rates. A good maintenance plan should lead to fewer defective parts and more consistent output.
Don’t ignore the people working closest to the equipment such as the maintenance personnel and operators. Their feedback can reveal small issues before they become big problems. Also, keep detailed records of every maintenance intervention. These logs help you spot patterns, such as recurring problems with the coolant tank or electrical components.
If you see fewer breakdowns, smoother machine operation, and better-quality products over time, then your maintenance program is delivering results and that means your CNC machine is running closer to optimal performance.
eWorkOrder CMMS Help Ensure a Seamless CNC Machine Maintenance
For manufacturing plants relying on CNC machines, keeping equipment in top operating condition is critical to meeting production goals and maintaining quality. A powerful CMMS (Computerized Maintenance Management System) like eWorkOrder provides the tools needed to streamline and optimize machine maintenance, ensuring minimal downtime and maximum efficiency.
eWorkOrder CMMS allows maintenance teams to plan, schedule, and track service activities for CNC machines with precision. By automating equipment maintenance, it ensures that preventive tasks are performed on time, reducing the risk of unexpected breakdowns. This proactive approach not only extends the life of CNC machines but also enhances production reliability.
One of the standout features is its real-time monitoring capability, which integrates sensor data to detect potential issues before they escalate. With equipment maintenance insights, teams can make data-driven decisions, shorten Mean Time to Repair (MTTR), and increase Mean Time Between Failures (MTBF). The result is a notable decrease in unplanned downtime and a significant boost in operational efficiency.
The benefits of eWorkOrder CMMS for CNC machine maintenance are substantial:
- Improved maintenance efficiency through better work order management
- Reduced monthly maintenance costs by eliminating unnecessary repairs
- Enhanced asset reliability with consistent preventive servicing
By combining preventive strategies, data analytics, and streamlined workflows, eWorkOrder CMMS delivers a seamless CNC maintenance process. The result is not just well-maintained machines, but also improved production output, reduced costs, and long-term operational stability for manufacturing facilities.
Ready to take control of your CNC machine maintenance? Discover how eWorkOrder CMMS can transform your operations. Request a free demo today.
Conclusion
In the dynamic landscape of modern manufacturing, CNC milling machines emerge as indispensable workhorses, crafting intricate parts and propelling production forward. To ensure seamless productivity and prolong the longevity of these pivotal assets, adopting a proactive maintenance approach is imperative. By incorporating a state-of-the-art Computerized Maintenance Management System (CMMS), businesses can unlock the transformative potential of streamlined maintenance operations and data-driven insights.
FAQs about CNC Milling Machine Maintenance
What is a CNC milling machine?
CNC, an abbreviation for Computer Numerical Control, revolutionizes milling processes. Unlike manual operation, a CNC milling machine is guided and supervised by numerical computer control. These advanced tools execute machining tasks akin to drilling and cutting with unparalleled precision, eradicating the potential for human error.
What is the difference between CNC milling and cutting?
Unlike CNC turning, which usually only uses a single-point cutting tool, CNC milling is performed using various axes. The more traditional of these is the 3-axis, which enables the cutting tool to move in three directions – known as X, Y, and Z.
How often should I perform maintenance on my CNC milling machine?
Routine maintenance varies based on usage. Daily visual checks and lubrication are recommended, with more in-depth maintenance conducted weekly or monthly.
What are the signs that my CNC milling machine needs maintenance?
Unusual sounds, reduced cutting precision, or irregularities in surface finish can indicate the need for maintenance.
Can I perform CNC milling machine maintenance myself?
Basic tasks like visual inspection and lubrication can be done by operators. However, complex tasks require expertise to avoid causing more harm than good.
What role does coolant play in CNC milling machine maintenance?
Coolant aids in temperature control and chip evacuation, promoting smoother operations and prolonging tool life. Regularly monitor and maintain the coolant system.
